Description

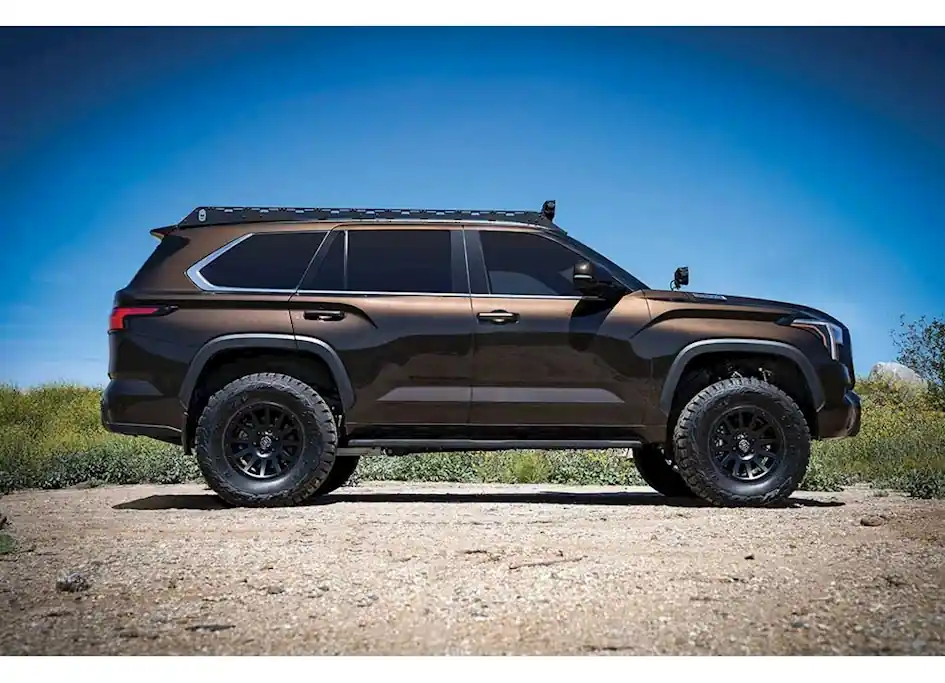

The ICON Vehicle Dynamics Stage 6 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 5 system with the upgrade of the 2.5 Series front coilovers to remote reservoir versions. This system offers improved on- and off-road performance, with greater front and rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35″ tires. To compliment the remote reservoir coilover shock and billet aluminum upper control arm combo, a sway bar drop kit for the front of the truck is included along with our dual rate coil springs and proven 2.0 nitrogen charged monotube shocks with remote reservoirs for the rear.
- 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.5 of front lift over stock
- All ICON shock absorbers are fully rebuildable and re-tunable
- Allows for full wheel travel without overstressing OE components
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Dual rate rear coil springs improve performance and ride quality while providing 2″ or 4″ of rear lift, depending on the vehicle’s stock suspension package
- Included sway bar drop brackets reduce bind in OE sway bar links
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Vehicle specific design for 2023-2025 Toyota Sequoia
- OEM Wheels & Tires Fitment: Yes
- TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.5” over stock and 4″ of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.5″ over stock and 2″ of lift over stock in the rear. If shorter rear ride heights are desired, consider kit part number K53236.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required f
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm Offset
